Professional 360° Cryolipolysis Fat Freezing Machine (4 Handles)

The ultimate non-invasive body contouring solution for aesthetic clinics. Our system utilizes advanced 360° surround cooling technology to selectively target and eliminate stubborn fat cells (apoptosis) without surgery or downtime. Designed for high-efficiency clinics, it supports simultaneous operation of 4 handles to maximize your daily revenue.

4 Handles Work Simultaneously: Treat 2 clients or 4 distinct areas at once.
360° Surround Cooling: 100% cooling coverage for faster and better results.
Safety First: Real-time temperature sensors and soft silicone cups prevent frostbite.
Pre-heating Mode: 3-minute warm massage improves blood circulation and comfort.
Diverse Applicators: Includes specialized Mini Handle for double chin treatment.

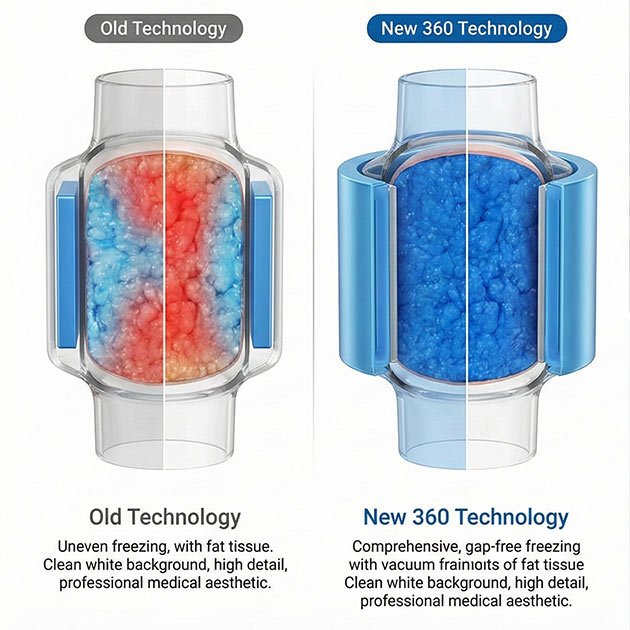

Upgraded 360° Surround Cooling Technology

Unlike traditional ‘two-plate’ cooling handles that only cover 40% of the treatment area (leaving blind spots), our upgraded 360° Surround Cooling Applicators provide 100% effective cooling coverage. The cooling energy is distributed evenly across the entire cup, ensuring that fat cells reach the crystallization point faster. This technology reduces treatment time from the standard 60 minutes to just 35-45 minutes, while increasing fat reduction efficiency by up to 25% per session.

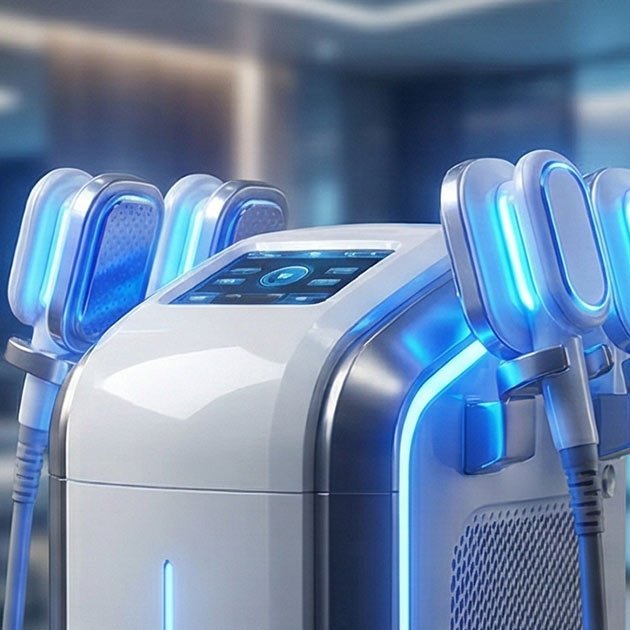

Quadruple Your Efficiency: 4 Handles Work Independently

Maximize your clinic’s ROI with our independent power supply design. The machine allows 4 handpieces to work simultaneously with different parameters.

Double Revenue: You can treat two different patients at the same time.
Full Body Treatment: Treat a patient’s abdomen, flanks, and thighs in a single session.
Customizable: Each handle can be adjusted individually for suction level and temperature, ensuring a tailored experience for every client.

Intelligent Pre-Heating & Soft Silicone Design

Patient comfort and safety are our top priorities.

1. Pre-heating Phase: Before the freezing begins, the machine performs a 3-minute heating massage (37°C to 45°C) to accelerate blood circulation and prepare the fat layer, reducing the shock of cold.

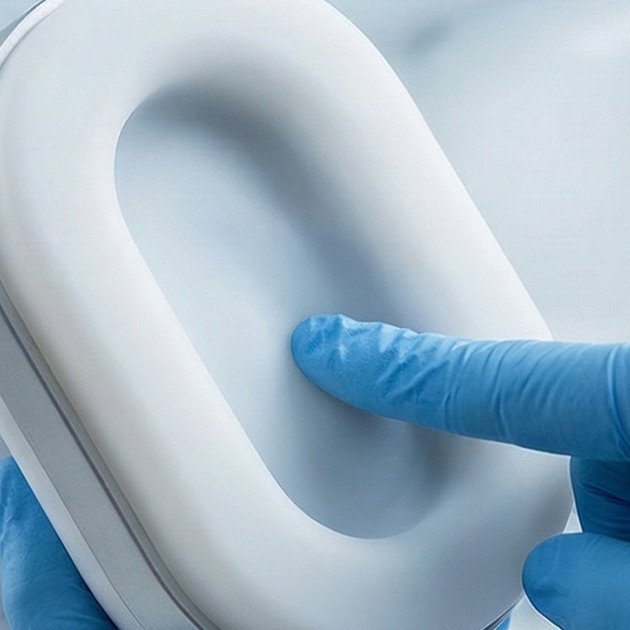

2. Medical-Grade Silicone: We replaced hard plastic cups with soft, medical-grade silicone contacts. This ensures a perfect vacuum seal, minimizes bruising, and provides a comfortable, ‘soft-touch’ experience for the client.

See the Machine in Action

The Mechanism: Natural Fat Elimination

Cryolipolysis works on the principle that fat cells are more sensitive to cold than surrounding tissues.

Crystallization: The applicator cools the fat layer to a precise low temperature (e.g., -5°C to -10°C), causing fat cells to crystallize and die (apoptosis).
Elimination: Over the next few weeks, the body’s lymphatic system naturally processes and eliminates these dead fat cells.
Result: A permanent reduction of fat in the treated area, with optimal results visible in 1 to 3 months.

Technical Parameters

Feature	Specification
Model Type	Professional 4-Handle Cryolipolysis System
Display	12-inch True Color Touch Screen
Handle Screens	Yes, each handle has a synchronization screen
Number of Handles	4 Simultaneous Handles + 1 Double Chin Handle (Optional)
Temperature Range	Cooling: -13°C to 10°C Heating: 37°C to 45°C (Pre-heating)
Vacuum Pressure	0 – 100 Kpa (Adjustable via German Valve)
Cooling System	Water + Air + Semiconductor + Semiconductor Radiator
Power Output	1000W High Power
Pump Configuration	4 x Air Pumps (Taiwan) + 2 x Water Pumps
Key Components	Taiwan MW Power, US Solenoid, German Proportional Valve
Water Tank Volume	14 Liters
Voltage	AC 110V/220V, 50/60Hz

FAQ

Do I need anti-freeze membranes for the treatment?

A: Yes, it is mandatory to use a high-quality anti-freeze membrane for every session to protect the skin from frostbite. We supply compatible membranes at wholesale prices.

Q: How many sessions are needed? A: Depending on the thickness of the fat, 1 to 3 sessions are recommended per area. Each session should be spaced 30-45 days apart.

Q: Can this machine treat double chins? A: Yes, our machine supports a specialized Mini Handle specifically designed for small curved areas like the double chin, knees, and underarms.

Q: Is there any downtime? A: No. Cryolipolysis is non-invasive. Clients can return to their daily activities immediately after treatment. Some mild redness or numbness may occur but resolves quickly.
